D.C. Caster

Technical details of D.C. Caster

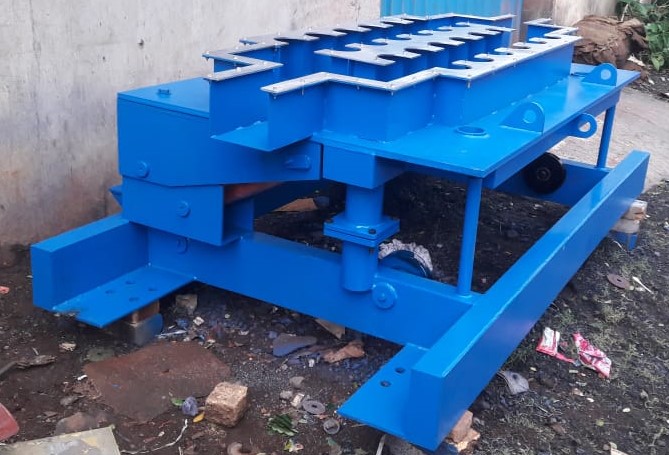

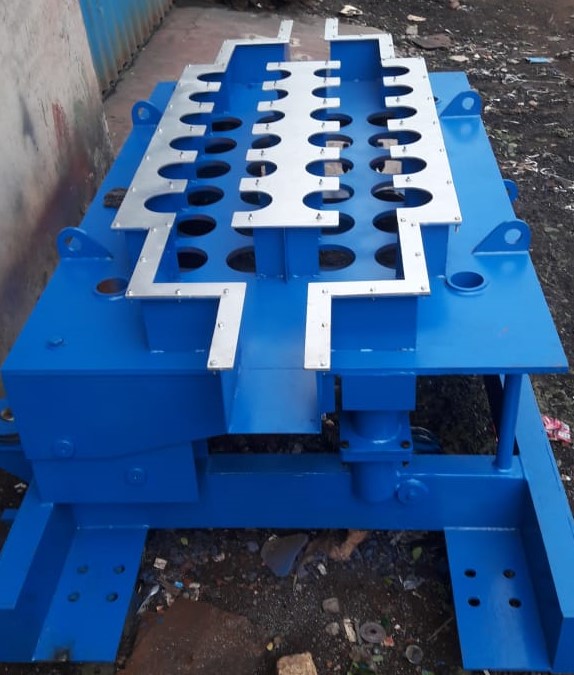

Hot top vertical D. C. Caster to cast up to 6 inch size round billeted of 6 meter length. Total no of billeted to be cast at a time 16 nos. The D. C. Caster station shall consist of hot top mold casting station having 16 molds. The mold station shall be hinged type. The bottom shoe will be attached with hydraulic cylinder having 6.2 meter stroke and piston rod dia 150 mm. The cylinder shall be guided by 4 nos guide pins. The cylinder shall be actuated with electrical servo valve ensuring the constant desired speed. The system shall be equipped with 15 hp power pack.
