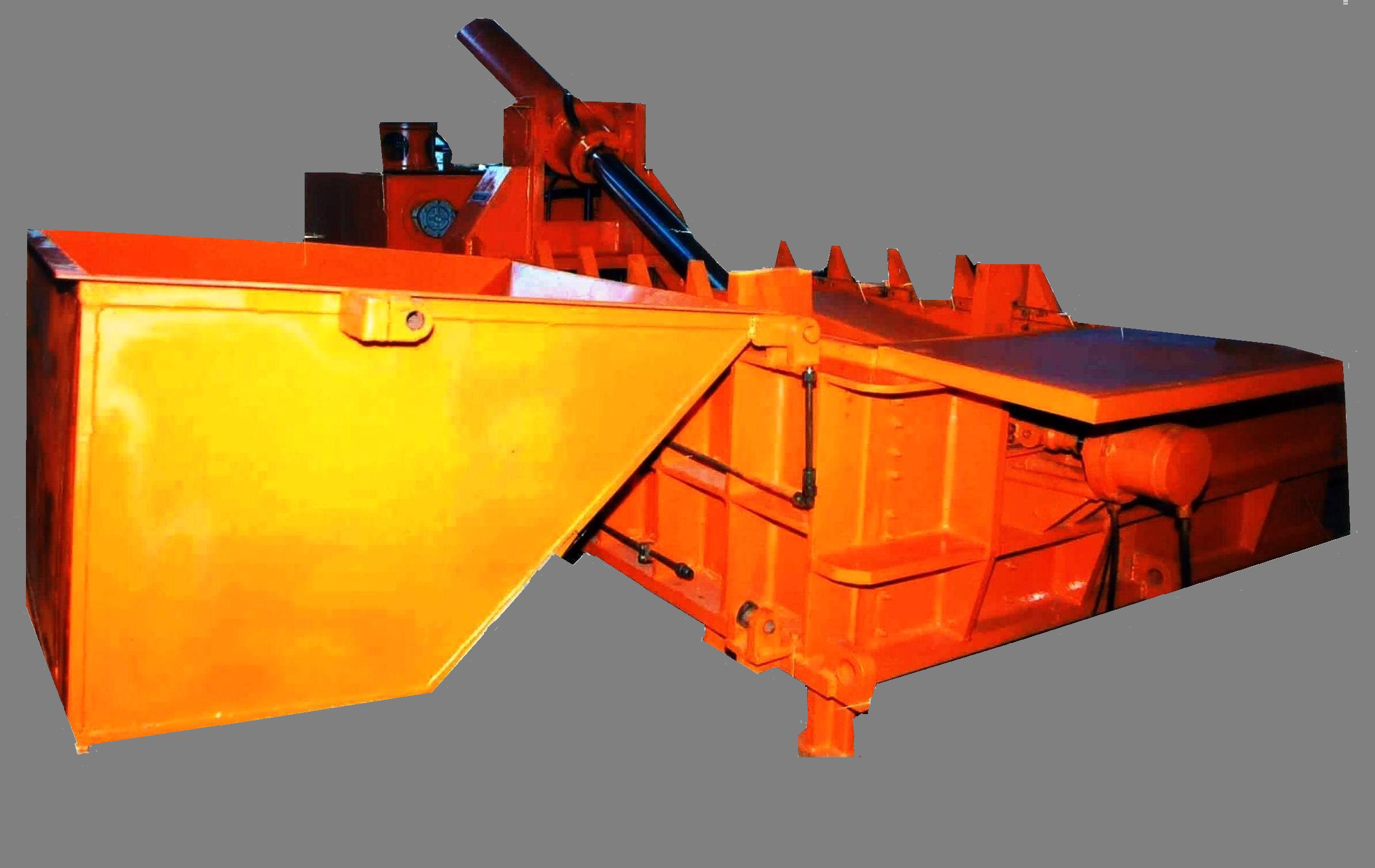

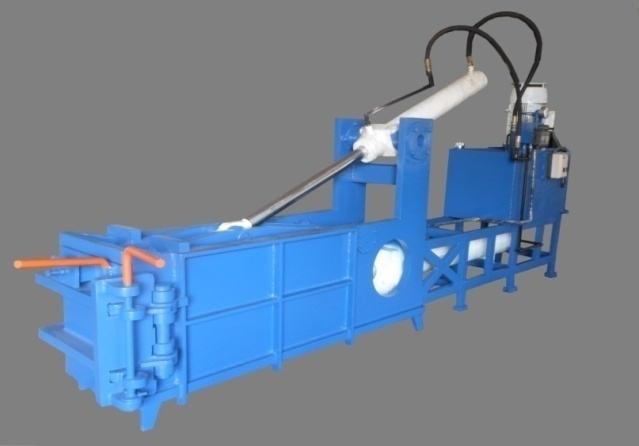

Scrap Baling Press

Technical details

Aluminum scrap normally contains iron particles if not removed may lead to increase in iron content in the melt which is not desirable different capacities and sizes are available on request.

Special Features

  • Maintenance of the Press is very easy.
  • All Spare Parts are easily available.
  • Rigid construction.
  • Replacement of parts is easy & less time consuming.
  • User – Friendly Press.
  • All parts are of international standards, hence reliability is more.
  • Hydraulic Valves, Electric Motor & Other Components



Functioning Of Press

The bailing press shall be a Top filling type, with individual solenoid control valves for each ram movement.

First Action :

After the loose scrap is filled in the chamber the first solenoid coil will actuate the top Cylinder which would bring down the Hinge lid and exercise the First Pressure and take down the scrap to 15 ” size.

Second Action :

After this the 2 nd Cylinder ( Length wise) will actuate and start pushing the first compressed scrap till the length reaches 15 ” size.

Third Action :

Side cylinder will compress the material to its final size.

Forth Action :

The bottom cylinder will move upward to eject the bale from the chamber.

Hydraulic Valves, Electric Motor & Other Components

All the hydraulic components & valves will be internationally reputed make i.e.Yuken/ Polyhydron/ or equivalent make for trouble free & smooth operation of the press.

Manifold Block

All the hydraulic valves will be mounted on specially designed manifold block to decrease the piping lines, it further reduces chances of any leakage during operation of the press.

Frame

Fabricated design, Stress Relieved, Auto Cad designed for low deflections, Quality M.S. steel Plates used for fabrication.

Cylinder/Ram

Cylinder manufactured out of ultrasonically tested high quality steel.

  • All cylinders bores will be honed to mirror finish or long life of piston seals in case of double acting cylinders.
  • All imported oil resistant polyurethane/nylon seals used in the glands for leak proof performance.
  • Ram accurately guided in PTFE + Bronze guides.
  • Ram surface Hard Chrome plated for long life of seals & corrosion resistance.
